End Devices: PowerView PVA20 Gauges
PVA20-A Series

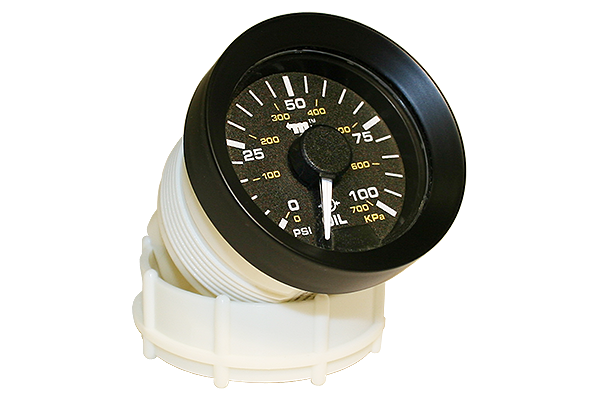

The PowerView Analog Gage PVA20-A is an Engine Oil Pressure Instrument designed to display easy-to-read information transmitted by the PowerView. The PVA20-A gage communicates with the PowerView via a single RS485 twisted pair MODBUS RTU serial link. The gage can be daisy-chained using quick-connect harnesses with watertight connectors.

The major feature of the PVA gage is its balance between design and functionality. These modern gages offer a selection of lens and bezel styles and colors. The PVA gages also include features such as a smooth stepper motor operation for the 270-degree sweep pointer, an environmentally sealed case with two Deutsch DT style connectors molded into the case and green LED backlighting.

They are available for standard 2-1/16-inch (52mm) and 3-3/8-inch (86mm) diameter mounting hole sizes. In addition, the polycarbonate/polyester alloy cases incorporate a D shape allowing panel cutouts that eliminate gage rotation during installation. All PowerView gages can be powered by 12- or 24-VDC systems.


Literature

Sales Bulletin: PVA Series
02125  rev. 2017/07/28

Installation Instructions: PVA20 and PVA35 Series
PVA-02126N (00-02-0532)  rev. 2016/03/03

Wiring Harness Accessories: PVA Analog Gages & PV101 Module
03020  rev. 2014/09/27



End Devices: PowerView PVA20 Gauges
PVA20-B Series

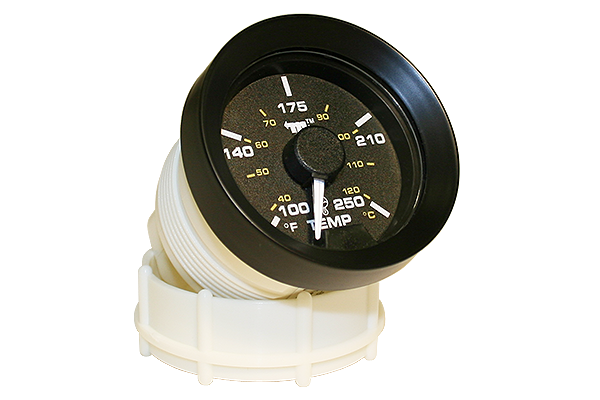

The PowerView Analog Gage PVA20-B is an Engine Coolant Temperature Instrument designed to display easy-to-read information transmitted by the PowerView. The PVA20-B gage communicates with the PowerView via a single RS485 twisted pair MODBUS RTU serial link. The gage can be daisy-chained using quick-connect harnesses with watertight connectors.

The major feature of the PVA gage is its balance between design and functionality. These modern gages offer a selection of lens and bezel styles and colors. The PVA gages also include features such as a smooth stepper motor operation for the 270-degree sweep pointer, an environmentally sealed case with two Deutsch DT style connectors molded into the case and green LED backlighting.

They are available for standard 2-1/16-inch (52mm) and 3-3/8-inch (86mm) diameter mounting hole sizes. In addition, the polycarbonate/polyester alloy cases incorporate a D shape allowing panel cutouts that eliminate gage rotation during installation. All PowerView gages can be powered by 12- or 24-VDC systems.


Literature

Sales Bulletin: PVA Series
02125  rev. 2017/07/28

Installation Instructions: PVA20 and PVA35 Series
PVA-02126N (00-02-0532)  rev. 2016/03/03

Wiring Harness Accessories: PVA Analog Gages & PV101 Module
03020  rev. 2014/09/27



End Devices: PowerView PVA20 Gauges
PVA20-T Series

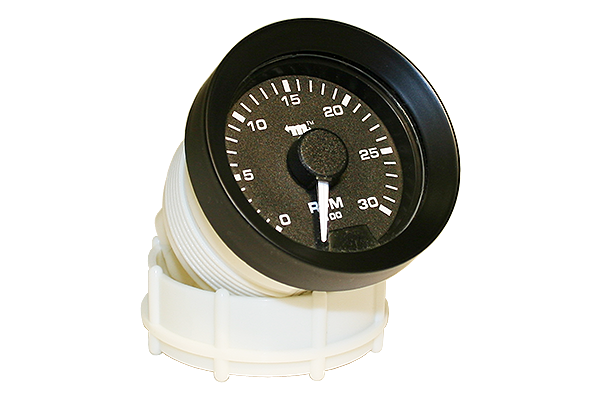

The PowerView Analog Gage PVA20-T is a Tachometer Instrument designed to display easy-to-read information transmitted by the PowerView. The PVA20-T gage communicates with the PowerView via a single RS485 twisted pair MODBUS RTU serial link. The gage can be daisy-chained using quick-connect harnesses with watertight connectors.

The major feature of the PVA gage is its balance between design and functionality. These modern gages offer a selection of lens and bezel styles and colors. The PVA gages also include features such as a smooth stepper motor operation for the 270-degree sweep pointer, an environmentally sealed case with two Deutsch DT style connectors molded into the case and green LED backlighting.

They are available for standard 2-1/16-inch (52mm) and 3-3/8-inch (86mm) diameter mounting hole sizes. In addition, the polycarbonate/polyester alloy cases incorporate a D shape allowing panel cutouts that eliminate gage rotation during installation. All PowerView gages can be powered by 12- or 24-VDC systems.


Literature

Sales Bulletin: PVA Series
02125  rev. 2017/07/28

Installation Instructions: PVA20 and PVA35 Series
PVA-02126N (00-02-0532)  rev. 2016/03/03

Wiring Harness Accessories: PVA Analog Gages & PV101 Module
03020  rev. 2014/09/27
