End Devices

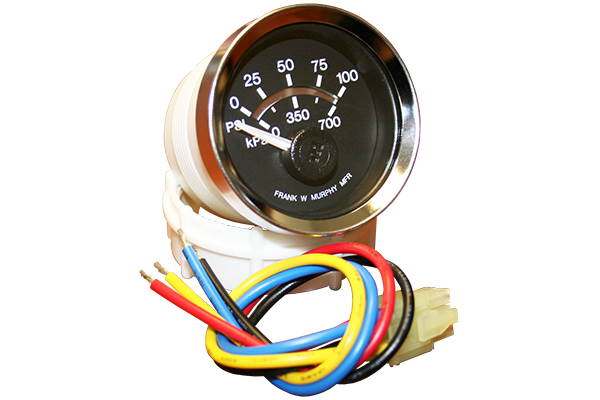

The EGS21 Series Swichgage instrument has all of the features of the EG21 Series Gage plus an adjustable set point Power Hall Effect switch output for operating alarms or equipment shutdown. The trip point is adjustable over 90 percent of the scale and has a set point indicator visible from the gage face. Now you can have both the ease of electric gage installation and the reliable switching of Murphy’s famous Swichgage instrument.
Features of the EG Series include:
· EG Air Core Movement design
· Technological improvements in lighting, accuracy in reading and wiring installation
· Environmentally sealed design
· Exceeds the rigid SAE J1810 standard
· Corrosion-resistant materials
· Desirable for marine and other environmentally sensitive applications
· Soft, non-glare dial and pointer illumination by cold light LED
Sales Bulletin: EG/EGS Series
95090 rev. 2015/09/09
Sales Brochure: EG/EGS Series
0610119 rev. 2006/08
Installation Instructions: EG/EGS Series
00-02-0251 rev. 2016/03/07
Installation Instructions: Off-Equipment Mounting Kit
EGPK-95083N (00-02-0212) rev. 2001/11

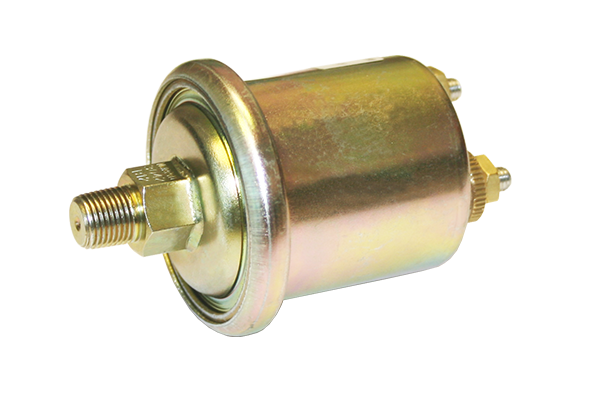

These Pressure Senders are designed to be used in conjunction with our EG Series Swichgage Instruments as well as CAN I/O modules.
NOTE: Always provide proper circuit protection with fuses or circuit breakers.
Sales Bulletin: Pressure Senders
1411607 rev. 2014/12/08

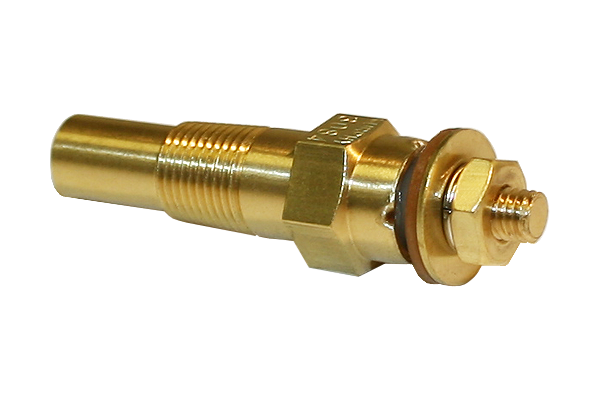

These Temperature Senders are designed to be used in conjunction with our EG Series Swichgage Instruments as well as CAN I/O modules.
NOTE: Always provide proper circuit protection with fuses or circuit breakers.
Sales Bulletin: Temperature Senders
1411608 rev. 2014/12/09

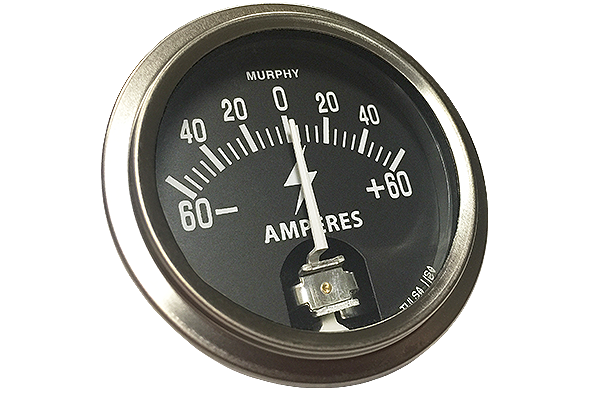

The 2" dial 60-0-60 Ammeter is a +/-60 ampere measuring instrument that is used to measure the flow of electric current in a circuit.
Wiring Instructions: 60-0-60 Ammeter
00-02-0207 rev. 2016/02/26
